The Most Versatile Disc Chain Toolbar for Australian Farms

Overview

The BROOKFIELD® ChainBar is trusted by farmers across Australia and globally as a proven solution to improve soil health and streamline the tillage-to-seeding process. Designed to work seamlessly with the full range of BROOKFIELD® Chains, this versatile toolbar handles everything from post-harvest stubble management to pre-sowing soil conditioning , all in a single pass.”

With configurations of up to seven Chains, the ChainBar is engineered to adapt to a wide range of soil types and farming conditions, giving you a tailored approach to strategic tillage.

Why the ChainBar is Essential for Your Tillage & Seeding Program:



Reuse leftover stubble

ChainBar fitted with Disc Chain of your choice ensures that your leftover stubble is laid down and crushed to create a mulch-like protective layer over your soil reducing evaporation and boosting microbial activity.

Weed-Free Seeding

Early summer pass with ChainBar fitted with Disc Chain will encourage weeds to come up early so they can be removed with another pass before seeding.

Request a Demo
Request a Quote
Model
Working Width
Transport Width
Transport Height
Transport Length
Weight*(tonne)
D40
4.00m / 13.12ft
2.45m
2.30m
7.10m
1.2 – 4.2
D60-I
6.10m / 20.01ft
2.50m
3.70m
7.50m
D40
D60-II
6.50m / 21.33ft
2.50m
3.50m
9.70m
D40
D90
9.20m / 30.18ft
3.49m
3.80m
9.60m
D40
D130
13.00m / 42.65ft
5.05m
4.70m
12.85m
D40
D130D**
12.90m / 42.32ft
3.49m
4.30m
13.00m
D40
D150
15.00m / 49.21ft
6.05m
5.10m
14.80m
D40
D150D**
15.30m / 50.20ft
3.49m
5.00m / 4.00mm**
14.95m
D40
D185D**
18.40m / 60.37ft
5.10m
4.90m
19.00m
D40
*Range from weight of bar to weight of bar with heaviest chain.
** Indicates 5 section (Double – fold)
*** Indicates double fold tail
Option & Extras
Extra Adjustments
Centre Gang
Adjustable Rocker
Lights & Signs
LED Tail-lights Kit & Flags
OVERSIZE Sign & Flags
Add-On Kits
Small Seeds Applicator
Chemical Application Kit
Tow Eye Size
50mm – Single Tongue (Reducing Bushes available)
Hydraulics
Dual Remote
Recommended Operating Speed
8 – 18 km/h (PC18 & DLC36)
8 – 14 km/h (DC60, 64, 72 & 90)
Chain
D40
D60
D90
D130/D
D150/D
D185D
PC18
40
64
90
132
152
180
DLC36
52
83
117
171
197
234
DC60
72
115
162
237
273
324
DC64
120
192*
270
396
456
540
DC72
80
128
180
264
304
360
DC90
140
224*
315
462
532
630
KC96
80
128
180
264
304
360
Some D60 models may not be compatible with this chain range.
May vary depending on chain and soil type.
Download Brochure
For more specific information, contact the BROOKFIELD® sales team on 1800 774 274 or sales@brookfield.net.au
For more specific information, contact the BROOKFIELD® sales team on 1800 774 274 or sales@brookfield.net.au

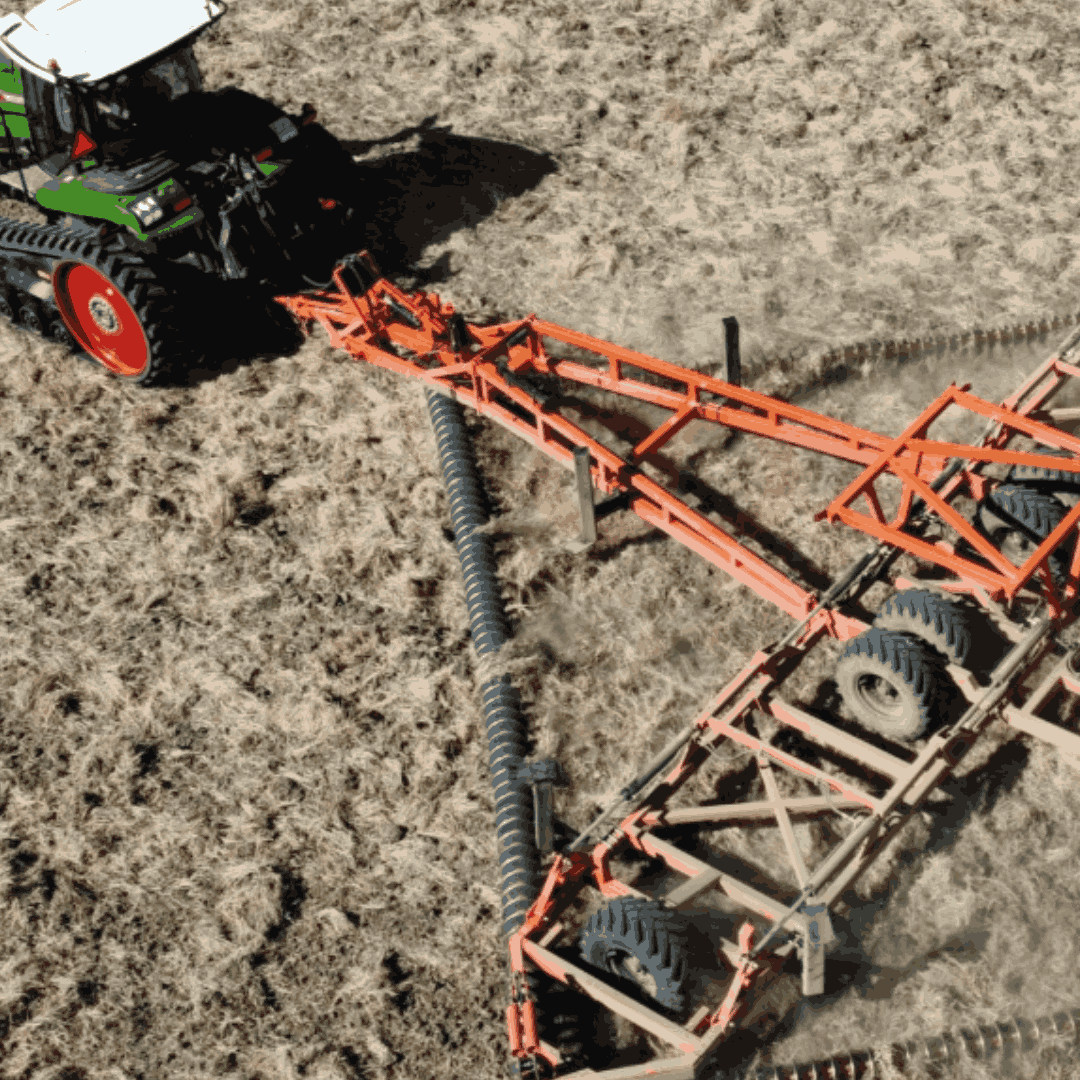

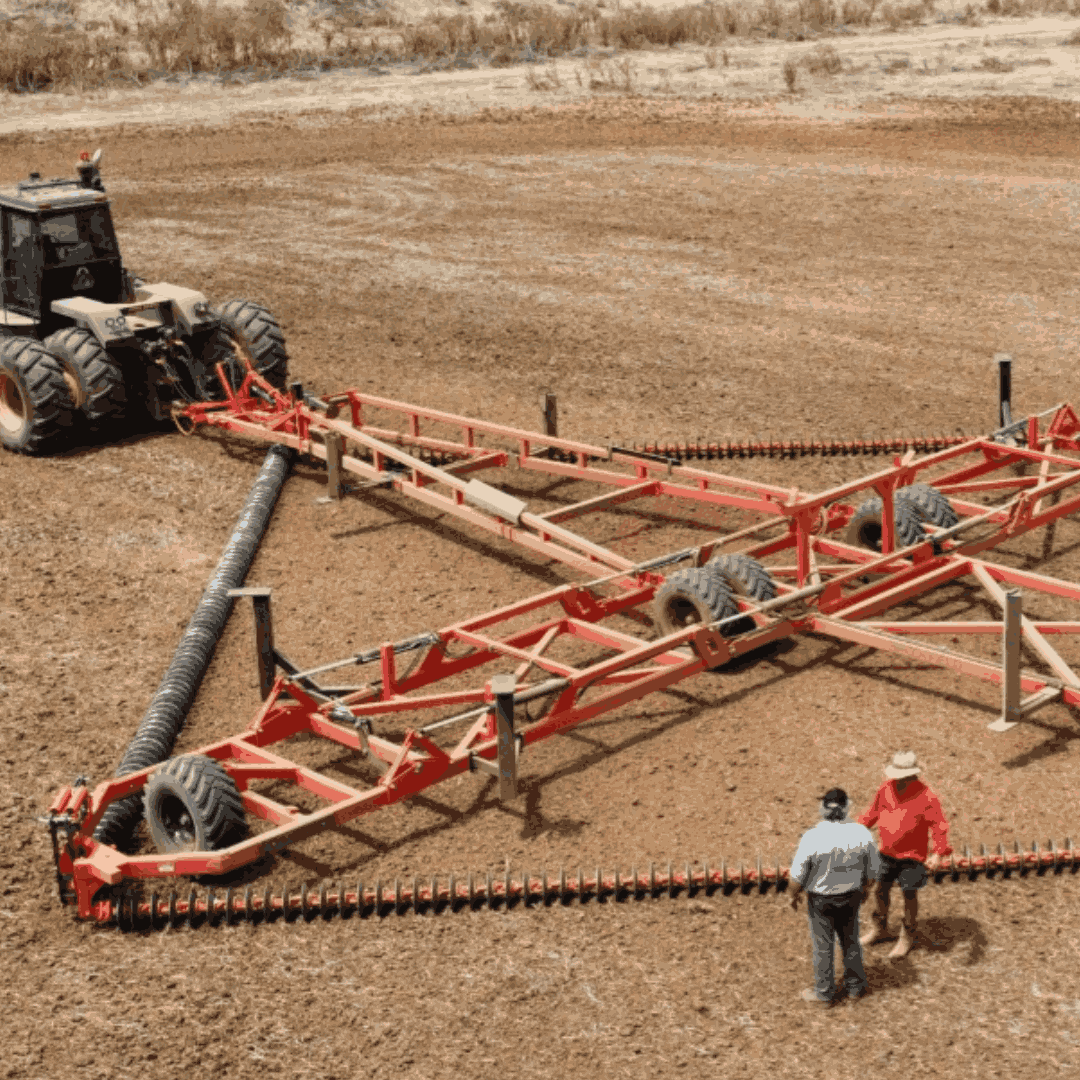

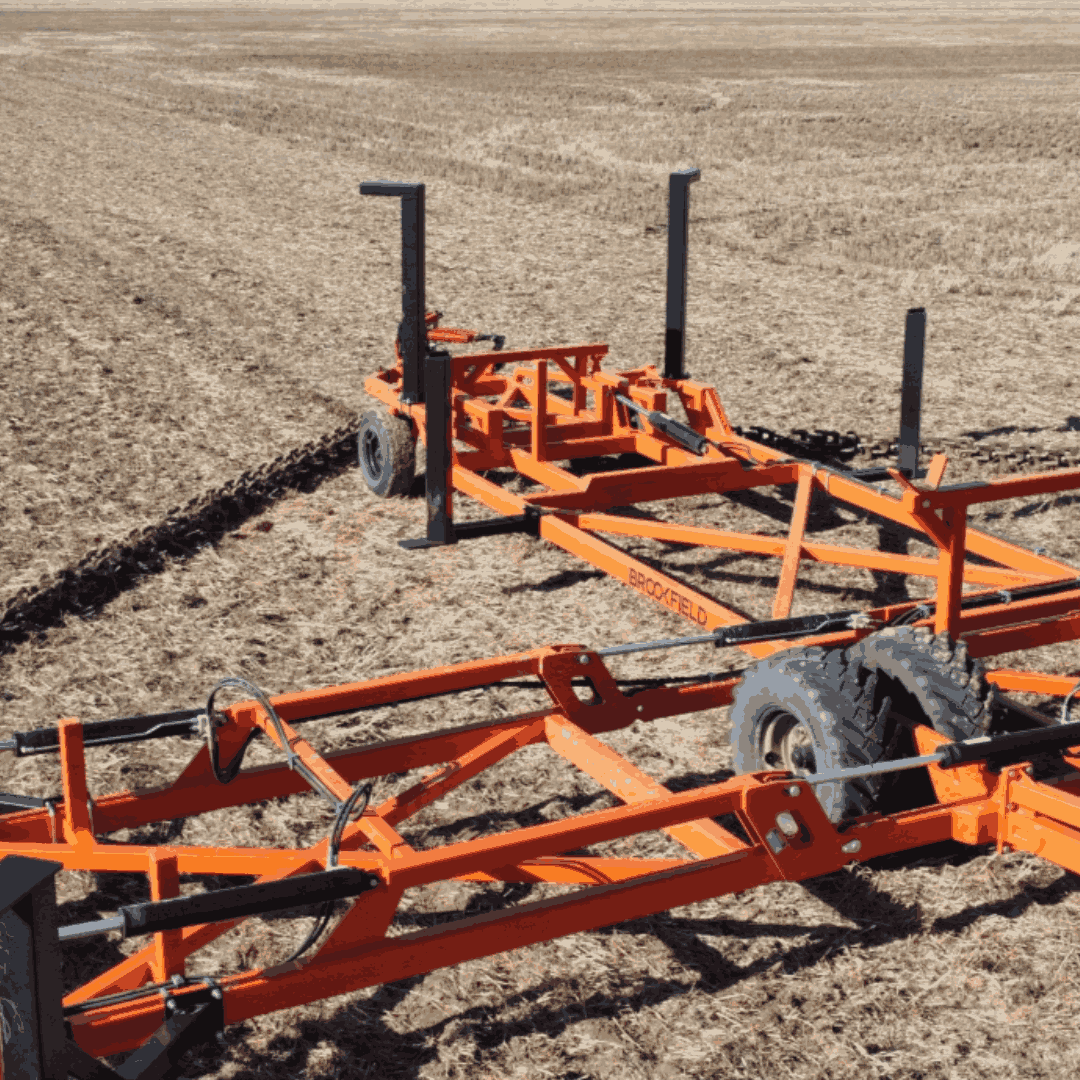

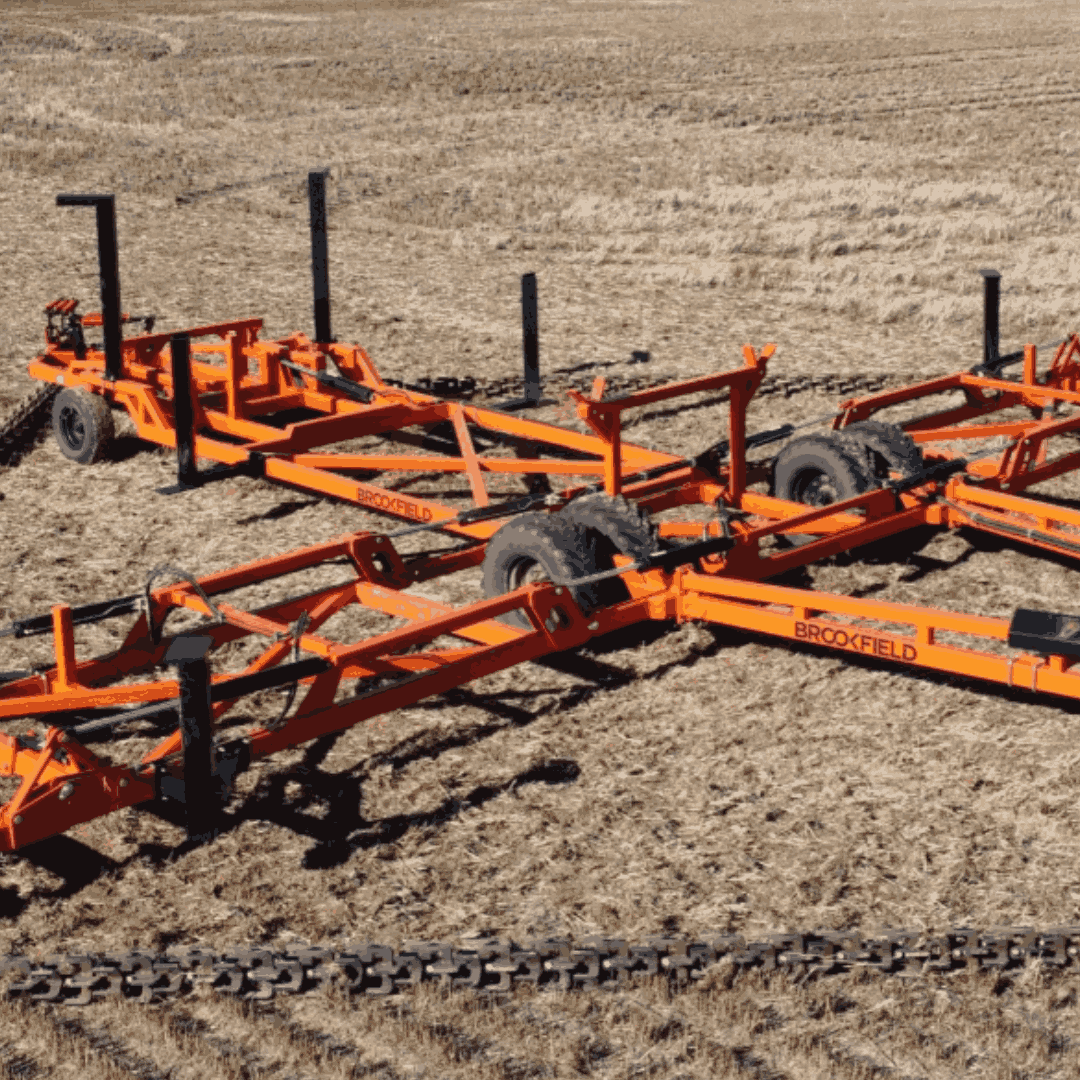

Our Gallery

Take a look at BROOKFIELD gear in action out in the field.
Chainbar gallery4-brookfield-innovative-agricultural-machinery-supplier (2)_3_11zon
Chainbar gallery4-brookfield-innovative-agricultural-machinery-supplier (3)_4_11zon
Chainbar gallery4-brookfield-innovative-agricultural-machinery-supplier_5_11zon
Chainbar-gallery4-brookfield-innovative-agricultural-machinery-supplier_7_11zon
Chainbargallery4-brookfield-innovative-agricultural-machinery-supplier_6_11zon

Chains & Tooling

The Right Chain for Every Farming Need

Get the full benefit of the BROOKFIELD® Chain and Tooling system designed to work seamlessly with your ChainBar setup. Simply measure the length of chain you require, place your order, and we’ll deliver it fully assembled and ready to go on your farm. Perfect for upgrades or specific soil applications.

PC18 - 18KG/m Prickle Chain
The lightest chain in the BROOKFIELD® range, the Prickle Chain is ideal for minimum and light‑till applications. It is also a farmer favourite when paired with the Small Seeds Applicator, ensuring even distribution and gentle soil contact.

Our Dog Leg Chain is a unique zero‑till chain designed for superior stubble control, particularly in erosion‑sensitive soils. It is also commonly used with the Small Seeds Applicator and as a levelling tool behind a seeder bar.

Sharpened for maximum cut‑out, the CD5 Disc Chain is ideal for seedbed preparation and performs exceptionally well in heavy soils. Replaceable discs ensure durability and lower long‑term costs.
The LD6 Levelling Disc delivers maximum tilth creation and excellent performance in heavy soils. Its replaceable discs and flexible chain design make it a top choice for high‑usage operations and contractors.
The heavy‑duty Knuckle Chain is a zero‑till option suitable for all soil types. It excels at maximum stubble mulching with minimal soil disturbance, a proven way to improve germination rates and retain soil moisture.

Our new Continuous Cutting Edge Disc Chains are available in multiple weight configurations to suit different soil types and tillage requirements: 1 weight = 15 kg/m | 2 weights = 30 kg/m 3 weights = 45 kg/m
